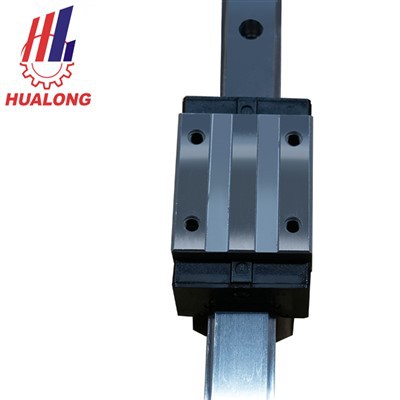

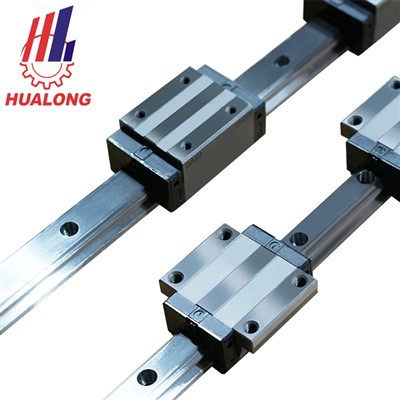

Roller Square Linear Guide

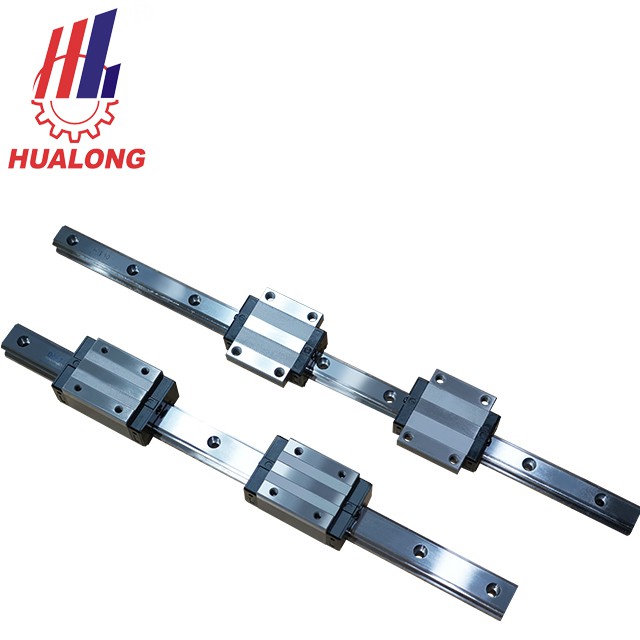

Linear Rail Block



The linear rail block s a precision moving bracket matched with the linear track, with internal rolling elements and a closed cycle system for low friction and high-precision movement.

Micro Linear Rail



A micro linear rail is a compact, precision linear motion component optimized for light-load, space-constrained applications which pairs a miniature hardened steel rail with a slider containing steel balls, converting sliding friction to rolling friction for smooth, low-noise, micron-accuracy movement.



Product advantages and features

1. Narrow design, saving bed space: The minimum width of the sliding block under the 35 wide guide rail is 68 mm. When two guide rails are arranged side by side, the total width is only about 10% wider than that of the same specification ball guide rail, but it provides three times the rigidity, which is suitable for multi axis gantry and double column structures.

2. High dynamic response and vibration suppression: Combined with ZA or ZB preloading, the natural frequency of the system can be increased by more than 30%, effectively reducing vibration patterns during intermittent cutting. The measured roughness can be reduced by 0.2 μ m.

3. Alternating arrangement of rollers with low temperature rise: Each column of rollers is arranged in a staggered manner, and there is no direct contact between the rolling elements. When running at full load for a long time, the temperature rise is 5 8 ℃ lower than traditional roller guides, and the thermal deformation is smaller.

4. Dustproof end cap, centralized lubrication: Oil holes are reserved on the side of the end cap, which can be connected to the centralized lubrication system. At the same time, metal scraper and rubber wiper are standard to prevent debris from entering.

5 Interchangeability: The mounting dimensions are completely interchangeable with square roller guides from brands such as THK and INA, and the slider can be replaced separately without scraping or grinding, reducing maintenance time by 70%.





Detailed Specifications & Parameters

01.

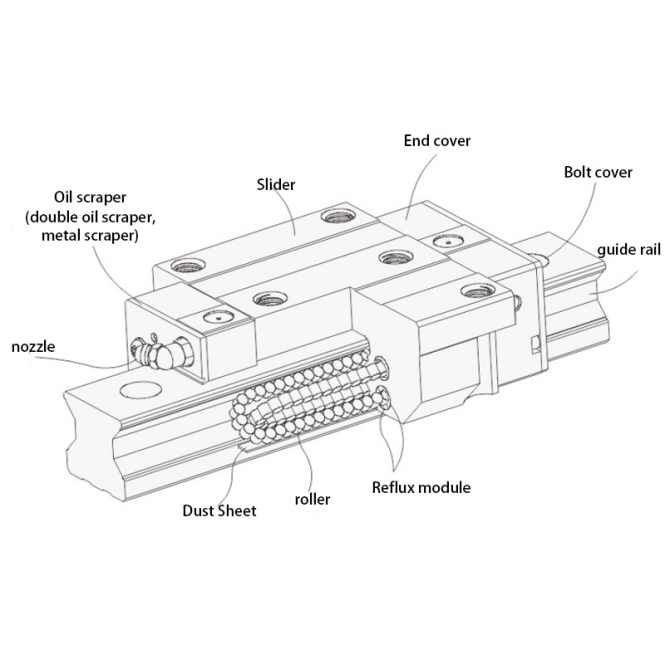

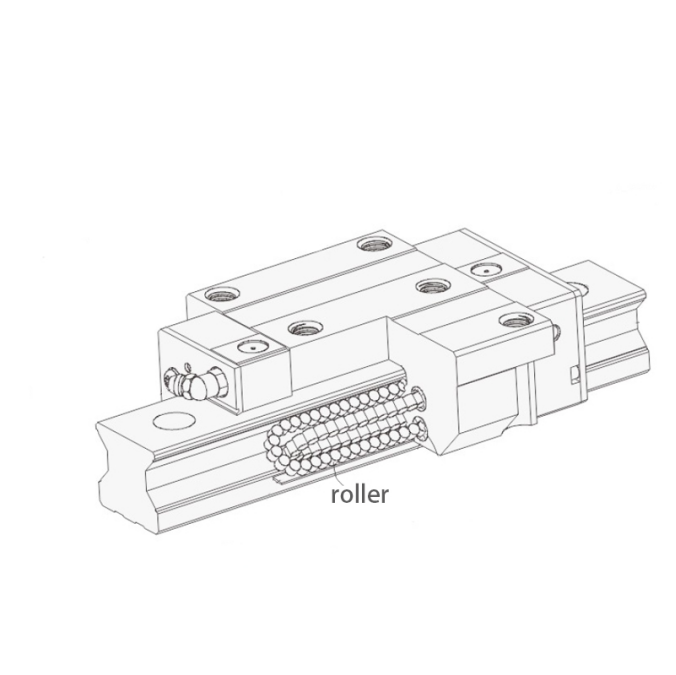

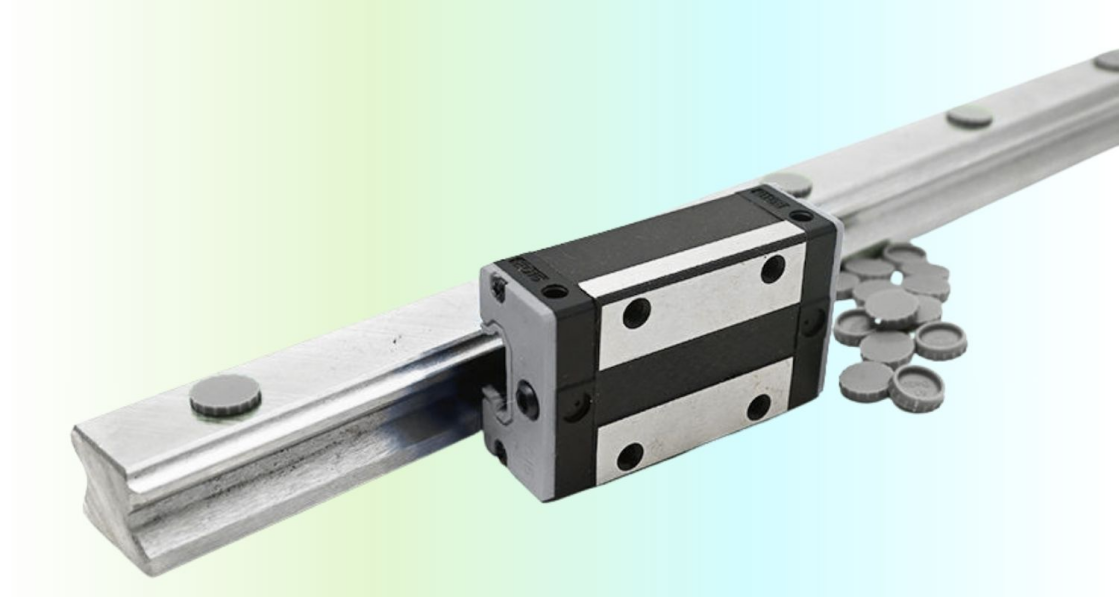

The rollers of the HRG square guide rail are in line contact with the raceway, and each column of rollers is arranged alternately. The axes of adjacent rollers are offset by a pitch to avoid friction between the rolling elements. The roller retainer uses high strength engineering plastic and stainless steel sheets to ensure that the rollers do not tilt or get stuck during high speed cycling. The raceway undergoes high frequency quenching and precision grinding, with a surface hardness of HRC58 62 and a hardened layer depth of ≥ 1.5 mm.

02.

HRG (HRG CA、HRGL CA)

H: Square Type
R: Roller
G: Guide rail

 Rail width (mm)：23
 Rail height (mm)：22
 Maximum rail length (mm)：4000
 Bolt hole spacing P (mm)：60
 End distance Es (mm)：20
 Slide size length x width x height (mm)：97.9 × 68 × 29
 Total height (mm)：36
 Steel ball diameter (mm)：4.0
 Basic dynamic rated load C (kN)：42.5
 Basic static rated load C₀ (kN)：82.3
 Net weight of guide rail (kg/m)：3.36
 Net weight of slider (kg)：0.92
 Accuracy：H, P, SP, UP
 Pre compression grade： Z0, ZA, ZB

Linear guides classified by load capacity

Overweight Load：

HRG
Roller design, maximum load bearing capacity.

Heavy Load：

HGH
Four rows of ball bearings, good rigidity.

Medium Load:

HEG、HWE
Low assembly, balancing rigidity and space.

Miniature Type:

HMG、HQG
Small size, suitable for light load precision equipment.



Company Introduction and Advantages

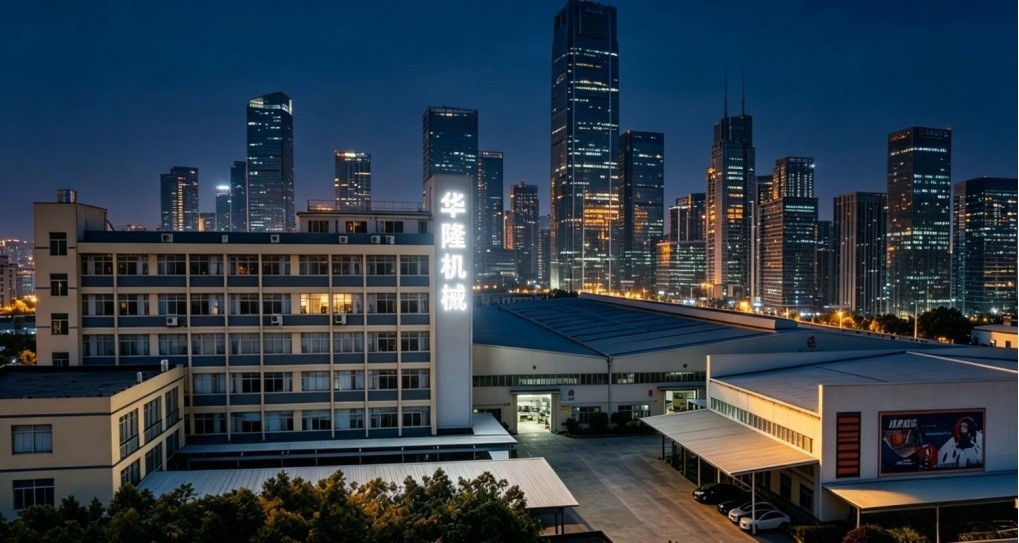

Hualong has been deeply involved in the field of roller type linear guides for 35 years, especially providing high quality square roller guides for precision grinders, electric discharge molding machines, and heavy duty vertical vehicles. We operate a 50000 square meter base and have over 300 professional technical staff. With a professional attitude, we are committed to providing customers with high quality assurance, ensuring that the verticality of the four installation surfaces of the square slider is ≤ 0.005mm.

Why do precision machine tool customers trust the Hualong HRG square type?

1. Traceability of accuracy: All HRG square linear guides are tested for parallelism and raceway profiles before leaving the factory. The accuracy levels H, P, SP, and UP are truly traceable, and the UP level can reach 2 μ m or 4m.

2. Low assembly HRGL series: The combination height is reduced by 20% compared to the standard type, specifically solving the problems of insufficient Z axis space in electric discharge machines and installation under grinding machine workbenches, while maintaining high rigidity of the rollers.

3. Complete dust proof configuration: For the processing of carbon fiber dust and graphite electrodes on grinding machines, KK double layer oil scraper and metal scraper can be selected to prevent grinding debris from entering the raceway and causing loss of accuracy.

4. Localization service: We have set up technical bases in Germany, Türkiye, India and other countries to provide 24h remote video guidance for installation, preloading adjustment, parallelism commissioning, etc. When necessary, we have professional engineers to provide on site services.

1. Quick selection: We offer guide rail widths and lengths of 23 65mm, as well as low assembly and precision levels. We will also provide installation size comparison tables and 3D models.
2. Sample samples: 1 2 sets of samples from conventional mold grinders and electric discharge machines, used for actual testing of running parallelism and stiffness.
3. Order and delivery time: Standard products will be shipped within 3 to 5 days, while non standard customized E values and countersunk holes require 15 to 20 days; UP level pairing grinding requires an additional 10 days.
4. After sales and training: Provide installation videos torque table； We can provide one offline training session per year for long term cooperative clients, including installation, calibration, preloading adjustment, etc.

Q1: Can a single square roller guide be used?
A2: Not recommended. A single square shaped structure has weak anti overturning ability and usually requires double tracks or two or more sliders.

Q2: Has the load bearing capacity of low assembly HRGL CA decreased?
A2: Due to the decrease in slider height, the number of rolling element columns is slightly reduced, and the load bearing capacity is about 15% lower than the standard type, but still twice that of the ball guide.

Q3: Does UP level accuracy have to be paired with grinding?
A3: Yes, UP grade refers to non interchangeable type, where the slider and guide rail are ground one to one. The delivery time requires an additional 10 days, but the walking parallelism can reach ≤ 2 μ m or 4m.

Q4: What is the maximum operating temperature for roller guides?
A4: Standard 10 ℃ to 100 ℃, metal end cap type can reach up to 150 ℃.

Q5: How to calculate the static safety factor of roller guide rail?
A5: fSL=C₀/P or M₀/M, generally ranging from 1.3 to 2.0 for operation and 3 to 5 for impact.
